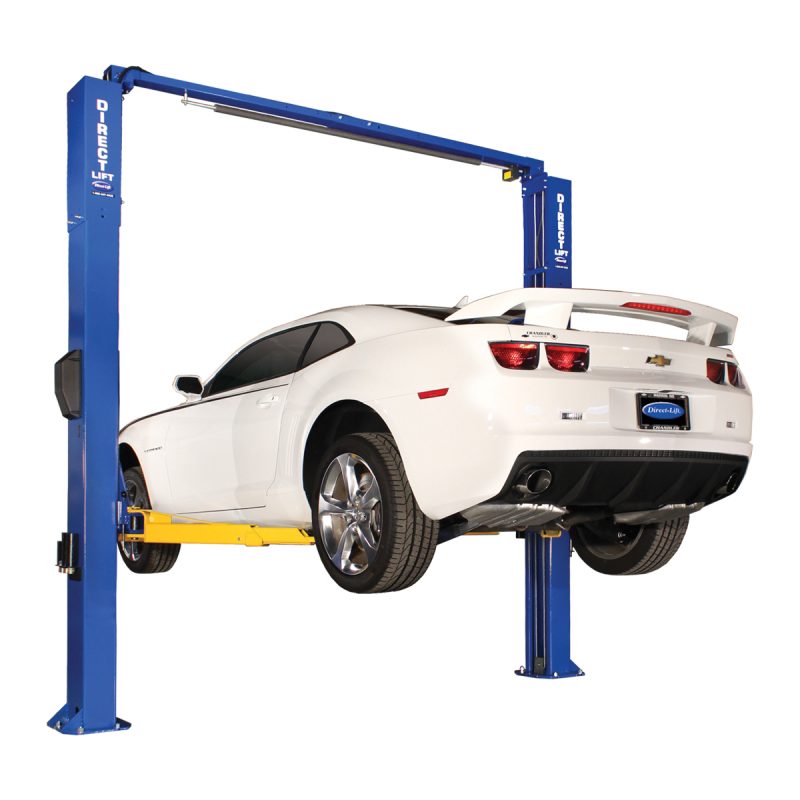

DL9 Two Post
- 9,000 lbs. Capacity
- Asymmetric arm design with symmetric post design for ease of vehicle entry/exit
- Blue
Features
The Direct Lift DL9 is a 9,000 lbs. capacity asymmetric arm 2-post lift
- Commercial grade
- Single point lock release
- Overhead model
- Powder coat finish
- 9,000 lbs. capacity
- 143 3/8″ tall
- Asymmetric arm design
- Symmetric post design
- Anchor bolts included
- Available in Blue color only.
Specifications
- Capacity 9,000 lbs.
- Overall Height 143 3/8″
- Inside Column 109″
- Maximum Lift Height 76″
- Overall Floor Width 131″
- Low Arm Height 3 5/8″
- Shipping Weight 1,450 lbs

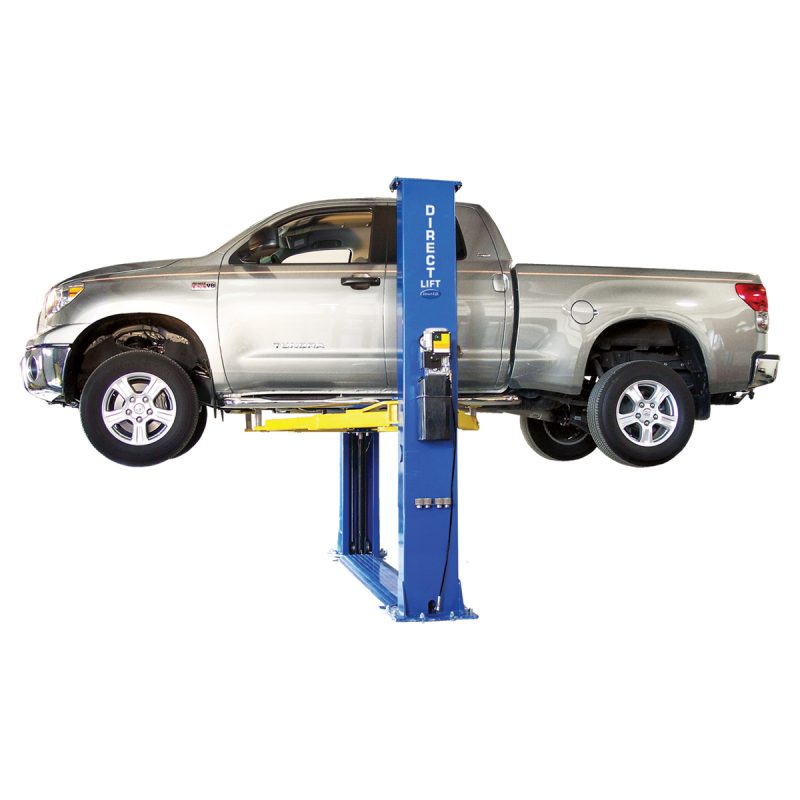

Pro9F Two Post
- 9,000 lbs. Capacity
- Ideal for low ceilings in shops and garages – overall column height of 9′ 3″
- Comes with FREE adapter extensions and mounting hardware
Features
The Direct Lift Pro 9F is a 9,000 lbs. capacity base plate style automotive lift with symmetric style arms. With an overall column height of 9’3”, the Pro 9F is the perfect choice for a shop owner with low ceiling clearance.
As with all of our two-post lifts, the Pro 9F will come with a free set of adapter extensions and all of the mounting hardware.
- Dual hydraulic cylinders
- Automatic arm restraints
- Adapter extensions included
- Dual safety latches
- Powder coat finish
- Designed & tested to rigid industry standards
- 9,000 lbs. capacity
- Five-year limited warranty
- Simple installation
- Available in Blue color only
Specifications
- Capacity: 9,000 lbs.
- Overall Height: 111″
- Lifting Time: 45 seconds
- Inside Column: 111″
- Maximum Lift Height: 81″
- Overall Floor Width: 138.5″
- Motor: 2HP, 220 Volt, Single Phase
- Drive Thru: 97″
- Column Size: 14.25″ x 7.5″
- Base Plate Width: 16″
- Base of Lift: 20.5″ x 17.5″
- Minimum Pad Height: 4.5″
- Shipping Weight: 1,730 lbs.
