Retreading

Since April 2000, federal agencies have been required to use retreaded tires on their vehicles wherever practical due to Executive Order 13149. Military aircraft and all commercial airlines use retreaded tires. Nearly 80 percent of all aircraft tires in service in the US are retreads at this time.

The average retread is 270 takeoffs and landings for the life with more than 100,000 aircraft retreads in use annually. Professional retreaders adhere to stringent industry recommended practices at every step of the retreading process. In order to ensure reliable retreads are produced, most plants in North America are either franchised, licensed, consulted by or affiliated with major brand suppliers that provide technical assistance and requirements. The top retreaders in the country like Bandag are ” ISO 9001:2000 certified, so you can expect and receive consistent, quality products” which ensures consumers can track and trust the reliability of retreads.

Consumers have a lot of power to ensure the industry self regulates as well. Retreaders face immediate severe financial and operational consequences if they make a mistake like contamination of a buffed surface. Retreaded tires in all applications, from passenger cars to heavy construction equipment, have consistently demonstrated the same reliability in operation as new tires. Many trucking fleets plan new tire purchases to have their worn casings retreaded two or more times as a routine part of their tire budgets. Today, in North America, there are as many retreaded tires in operation as there are original tread life tires.

Retreaded tires are safely used every day on airplanes, school buses, fire engines and ambulances, trucking fleets, taxis, Postal Service vehicles, military vehicles, and by millions of motorists.

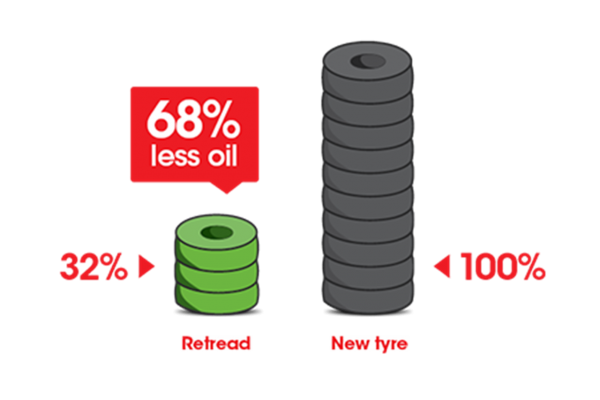

Retreading uses less oil. New passenger tires use seven to eight gallons of oil for the rubber components of a new tires, while retreading the same size tire only uses two to three gallons! Likewise, new medium truck tires required about 22 gallons versus a retread of the same size for only seven gallons.

Every year in North America, using retreads saves hundreds of millions of gallons of oil, and millions of tires continue a useful life rather than being consigned to a tire pile or landfill.

Maximize your impact! Proper tire inflation ensures the maximum life and efficiency out of your tires. This ensures they are retreadable when tread is worn and you save in fuel.

Who we are – The Retread Industry

USPS traditional delivery vehicle. Tread added to a casing.

What is retreading? Retreading is where casings, worn inspected tires, receive a new tread.

Retreading uses only high-quality, carefully inspected tire casings. The old-worn tread is buffed away and a new tread is bonded to the tire body in a process very similar to the manufacture of a new tire. There are a few different processing techniques, but affixing a new tread through the application of heat, time, and pressure are key to the finished product.

Since the early 1900s, tire retreading has grown steadily as an established industry. The number of retread plants in North America is down to 600 independently owned and operated from 2009 numbers of approximately 850. These plants are various sizes, from small operations producing 20 retreaded tires per day to the very large plants processing 1,000 or more retreads per day. Additionally, there are plants that retread only specialized tires such as those for off-the-road, farm and construction equipment. Altogether, these plants retread millions of tires a year, using millions of pounds of synthetic and natural rubber. This represents over $3 billion in retread tires sold annually. Learn more about the economic impact of retreading here.

Long-haul trucking companies are a major market for retreaded tires and use millions of retread tires annually. Profitability suffers if they are unable to use retreaded tires. Radial truck tires are guaranteed by the new tire manufacturers to be retreadable in the US. However, many foreign-produced tires cannot be retreaded. (In some instances, the major tire manufacturers guarantee two retreads on steel radial truck tires.)

Passenger cars, aircraft, sand and gravel trucks, delivery vans, the U.S. Postal Service (USPS), farm equipment and earthmovers can use all retreaded tires. Retreading opportunities increase throughout the US and internationally annually.

A casing goes through the testing machine looking for nail holes using 25,000 volts. Notice the markings added at the visual inspection as well.

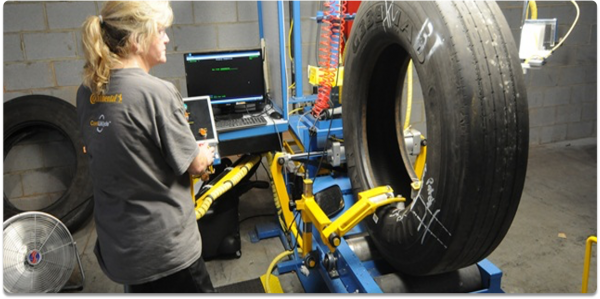

Step 1: Initial Inspection – The initial inspection determines whether a worn casing is accepted for retreading or rejected. It determines whether the tire body is technically sound enough to support another tread life and meets the customer’s specifications. Casings are rejected if they are not capable of service through another tread life. Every operator at their position is an inspector able to reject a tire or send it back to a previous step. Accepting a tire for retreading is the decision to put the company’s name on a final product and shows confidence that a person can operate a vehicle on that tire. Preliminary inspection is crucial to the success of the entire retread operation. Every operator at every post is an inspector, and a tire can be rejected at any point or sent back to a previous step.

Step 2: Non-Destructive Testing – Shearography, ultrasound, high-voltage, and X-Ray are some of the non-destructive testing methods used in retreading, enabling retreaders to actually “see through” the tire to determine if there are separations, broken steel cords, or any other damage that would preclude the tire casing from undergoing another safe and useful life after retreading. Tire casings that cannot pass these tests will not be retreaded.

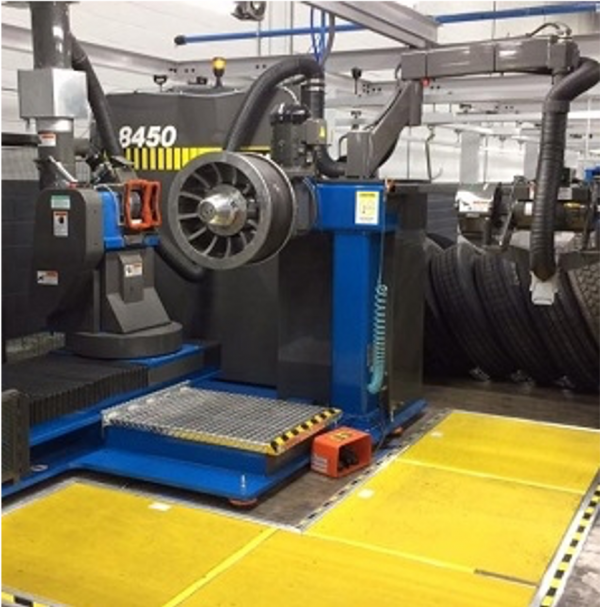

Image shows expandable hub tire is placed on before buffing process.

Step 3: Buffing – The worn tread is removed from a tire casing by buffing. The proper performance of the buffing operation is crucial to the retreaded tire’s future performance, since this is the surface the tread is applied to.

The casing is mounted on a lathe-type machine called a buffer, and inflated. While the tire rotates, a rasp removes the remaining tread material, buffing the casing surface to the correct shape, size, and texture to receive a new tread.

Every tire model has a designated crown width, profile, and radius. The casing must be buffed to the particular shape that will give the best tread-to-road contact. Part of the retreaders’ expertise is the ability to buff to the exact recommended dimensions and preferred texture.

Step 4: Casing Preparation/Repairing – Injuries remaining in the tire casing after buffing can be repaired if the damage is within acceptable limits. Retreaders recognize which injuries can be repaired and which cannot based on TRMG, TRIB, and TIA guidelines. Where injuries are too extensive, the casing is rejected. The repair operation is a crucial step in the tire retreading process.

A properly repaired tire is intended to last the life of the new tread being applied. Repair specialists are dedicated, knowledgeable individuals who are aware of their responsibility to the end users spending time on the road using the finished product.

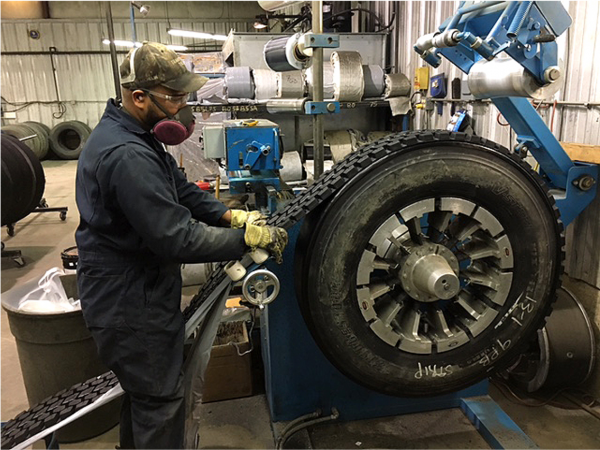

Image shows precured rubber applied to the casing. Note the ‘shiny’ layer between tread and casing that is the cushion gum between buffing surface and tread.

Step 5: Tread Application – The buffed casing is ready for a new tread after all the repairs. There are two types of vulcanizing processes that bond the tread to casings; mold cure and precure.

The Mold Cure Process – The application of tread in the mold cure retreading process is very similar to that in the new tire manufacturing process. Using one of several methods, uncured tread rubber is applied to the crown area of the buffed casing (in the case of bead-to-bead retreading, also to the sidewalls). The prepared casing, built to the correct diameter with uncured rubber material, is now ready to be placed in the mold for curing.

The Precure Process – As the name indicates, the tread rubber used in this process is molded and precured by the tread rubber manufacturer. The retreader selects the appropriate treads in strips or full circles of various designs, widths, and thicknesses. In the precure retreading process, a cushion gun bonding layer is placed between the tread and casing. The proper tread width is applied to the prepared casing in a straight and even fashion. The tire then moves to the chamber for curing.

Step 6: Curing – Curing, or vulcanization, is the process of bonding the new tread material to the prepared tire body. During the curing process, uncured rubber transforms from a soft, tacky, stretchy substance to a tough, hard tread that resists abrasion and provides excellent mileage and traction.

In the Mold Cure Process, the prepared casing, built to the correct diameter with uncured rubber, is placed into a mold.

The tire is inflated inside the closed and heated mold and stays inflated for a time period. The casing conforms the uncured material to the mold, forming the tread design.

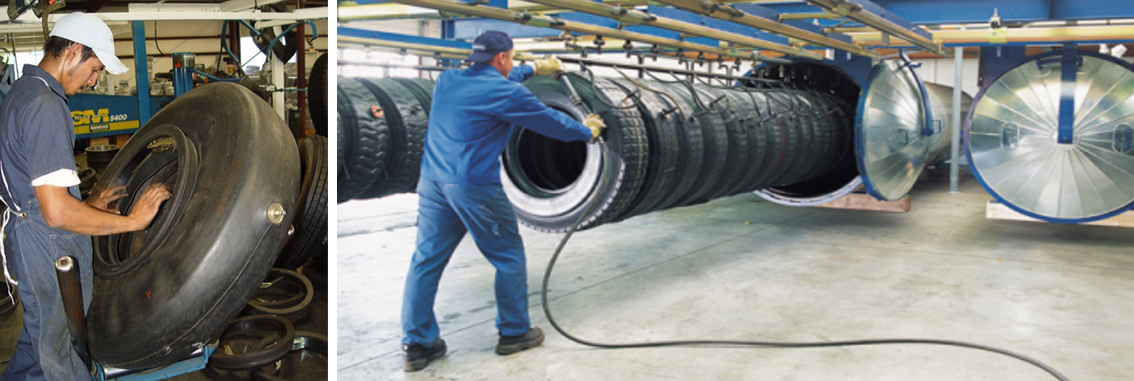

In the Precure Process, curing takes place within a chamber. The unit pressurizes, and the air is heated by electricity, steam, or hot liquid. Once the new rubber is in place, the prepared casing goes into a rubber envelope or membrane, much like an inner tube with a valve used to suck out the air, creating a vacuum and physical pressure on the tread. The next step is placing the tire into a chamber with specific pressure, temperature, and length of time. The tire cures with the cushion gum layer, bonding the precured tread to the tire. Check out tips on repairing envelopes or best practices for care!
