Wheel stud maintenance has never been easier with with Tire Toolz SC100. Regularly cleaned and maintained studs make lug nut installation simple and ensure a reliable tight fit. Not only does this increase the studs life but also improves safety.
The Tire Toolz SC100 Wheel Stud Cleaner uses three long lasting heavy duty carbon steel brushes to clean rust and debris from the stud threads to ensure proper torque. Made in the USA with quality you can trust.
- Fits with most air drills
- Replaceable brushes for an extended lifetime
- Made in the USA

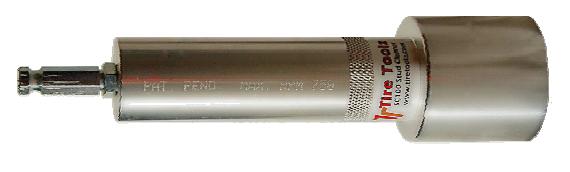

The SC100 Stud Cleaner quickly and easily removes rust, road grime and foreign particles from wheel studs. Three carbon steel brushes engage the full thread and provide a clean surface for the wheel retaining nut allowing an accurate final torque.

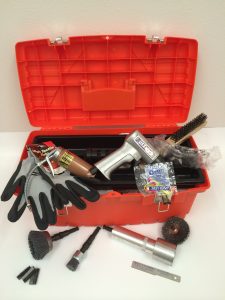

SC100 Stud Cleaner and pre-torque surface prep kit
Working with truck tire and wheel assemblies is inherently dangerous. The following procedures address properly mounting wheel and tire assemblies according to standard recommended practices from the Tire Industry Association, TIA, and the Technology and Maintenance Council, TMC R222C , of the American Trucking Association. This program does not address axle, hub and wheel end maintenance all of which can contribute to unsafe conditions. Tire Toolz SC100 Kit has all the items necessary to quickly and efficiently complete the TIA RIST procedure.
WARNING: Wheels, studs,nuts and hubs that are not properly installed, inspected or maintained may not be safe. Failure to follow proper installation or maintenance practices may result in injury or death. Always use proper personal protection devices for safety and to avoid injury.
RIST Procedure
Remove rust and dirt: Inspect all components: Snug wheel nuts: Torque to specification
Remove rust and dirt from all mating surfaces.

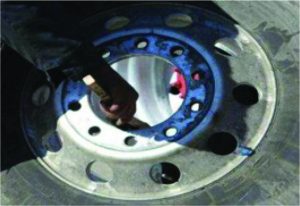

Wheel Openings and Pilot Pads
SC15563 Wire Brush & Q/C adapter

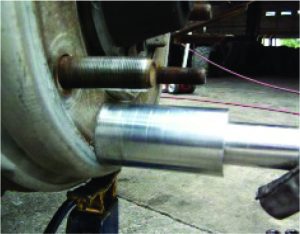

Wheel Studs
SC100 Stud Cleaner & RPG Air Drill

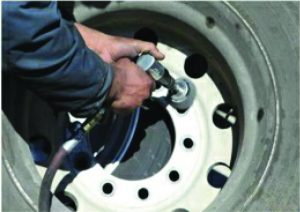

Wheel Mating Surfaces
SC14404 2-3/4" abrasive poly brush

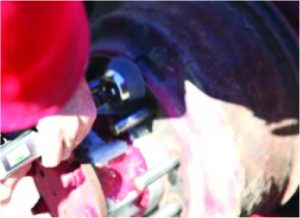

Hub & Brake Drum Face
SC14404 with QC adapter and SC10157 1" abrasive poly brush

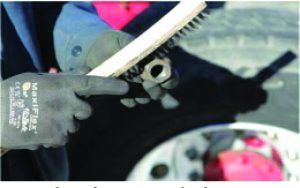

Wheel Nut & Flanges
44063 Wood Handle Brush

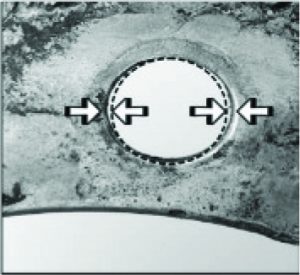

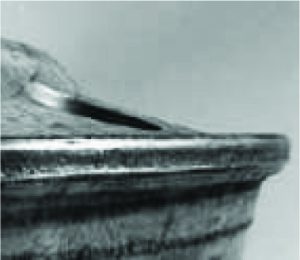

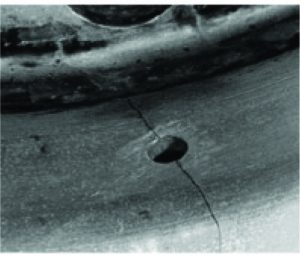

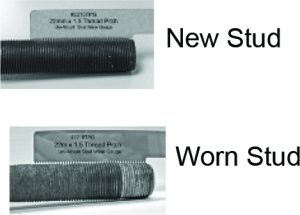

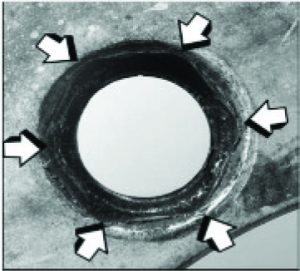

Inspect all Components for Wear and Damage

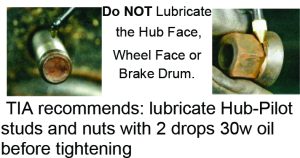

Lubricate Mounting Pads, Studs and Nuts *** Uni-Mount Only ***

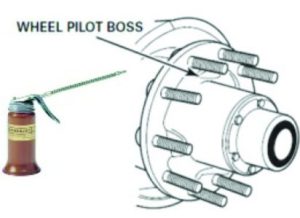

Oil Studs
Lubing studs

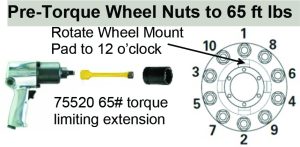

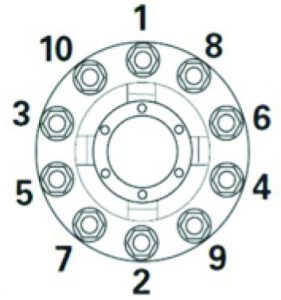

Tighten Wheel Nuts to Final Torque

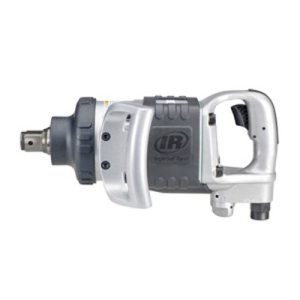

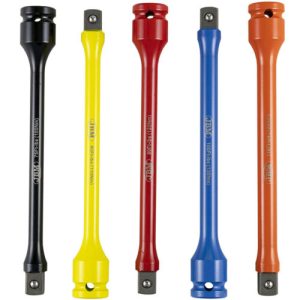

Short Shank 1" dr Impact with torque limiting extensions

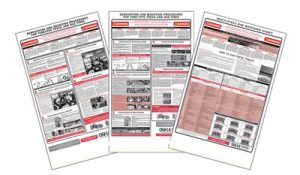

NEW OSHA 29 CFR 1910.177 wheel mounting procedure manual and charts. These are required by OSHA to be displayed in truck tire service areas or carried in road service trucks.
Use a 4AR1 or 600FHTW break back torque wrench to meet final torque requirements.
