LIFT FOUR POST PRO PARK 8K PLUS
Return to Service Equipment

The Pro Park 8 PLUS four post lift combines the advantages of the Pro Park 8S and 9 PLUS. The Pro Park 8 PLUS provides the perfect solution for increasing parking space without having to resort to any permanent changes to your shop or property. This car hoist allows you to double your parking space instantly, and is a versatile tool which can be used for any automotive lift and storage needs.

Features:

  •  ALI/ETL Certified
  • 8,000 lbs capacity
  • Exclusive adjustable lock ladder leveling system, allows your lift to be level at any height even on uneven floors
  • Single point lock releas
  • 115 Volt operation with standard 115 volt plug provided
  • Steel approach ramps included
  • Jack tray included
  • Caster kit included
  • 4 drip trays included
  • Durable powder coat finish
  • Available in black only



Specifications:

  • Capacity 8,000 lbs.
  • Lifting Height 86"
  • Overall Length w/Approach Ramps 226"
  • Overall Width (with motor) 121"
  • Overall Width (without motor)109 1/2"
  • Overall Length without Approach Ramps 194"
  • Approach Ramps 37"
  • Runway Width 18-1/2"
  • Runway Length 184"
  • Runway Thickness 4-1/2"
  • Clearance Between Columns 100"
  • Drive through width 86 1/2"
  • Height of Columns 95 3/4"
  • Clearance Between Runways 38"
  • Outside Runway to Outside Runway 75"
  • Clearance Under Runways 81"
  • Power Unit 110 Volt, 1HP
  • Shipping Weight 2,020 lbs.


Fill out the measurements in the areas below to see what the required ceiling height will be.
All measurements are in inches.

Please select a Four Post Lift:

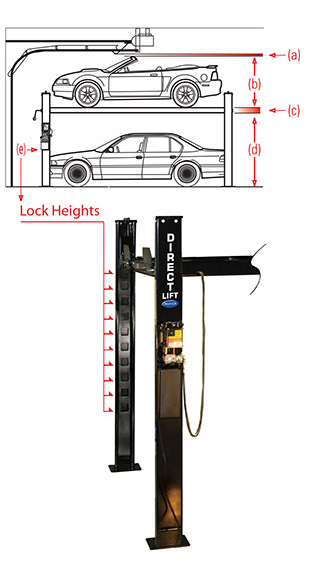

Step 1: Determine drive thru height
(e) Note: when a vehicle is raised on a four post lift and after reaching the desired height, the vehicle is lowered onto locking mechanisms in each of the four posts. These locking mechanisms are referred to as "locks" and serve to relieve the pressure on the hydraulic cylinders.
(d) Using the lock heights below for the lift you have selected, round your bottom vehicle height up to the nearest lock height. (See Illustration to the left)

Lock heights: (under runway)
" " " " " "
" " " " "
Step 2: Calculate your required height to the lowest obstruction, enter values in inches below.
(a) Min. clearance to lowest obstruction   "
(b) Top vehicle height + inches
(c) Runway thickness + "
(d) Drive under height (from Step 1) + inches

  Required ceiling height = "
or

Feet

Inches



PP8P

1920.0
